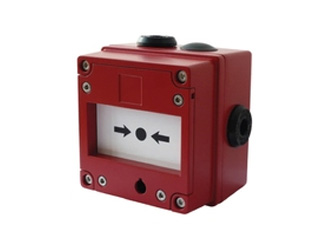

IS BREAK GLASS CALL POINT

PRODUCT OVERVIEW

The IS-CP4A-BG and IS-CP4B-BG break glass manual call points are approved for Zones 0, 1, 2, 21 & 22 requiring intrinsically safe equipment for the control of fire and gas alarm systems. Available with and without monitoring resistors all versions are certified to ATEX and IECEx standards.

FEATURES

• The IS-CP4 range features enclosures manufactured from corrosion proof, marine grade, copper free LM6 (A413) aluminium which is phosphated and powder coated.

SPECIFICATIONS

• IS-CP4A-BG : II 1G Ex ia IIC T6 Ga, II 2D Ex t IIIC T60°C Db, IP66
• IS-CP4B-BG : II 1G Ex ia IIC T4 Ga, II 2D Ex t IIIC T70°C Db, IP66
• Ambient : Ta = -40°C to +55°C
• Ingress protection : IP66
• Housing material : Marine grade copper free LM6 Aluminium
• Housing finish : Phosphated & powder coated finish: anti-corrosion
• Colour : RAL3000 Red (others available on request)
• Cable entries : 2 x M20 clearance top and 1 x M20 clearance side Back box can be rotated to give 2 x bottom and 1 x side entries
• Stopping plugs : 2 x nylon plugs as standard Brass and stainless steel plugs optional
• Terminals : 6 x 4.0mm² cables

ITEM NUMBERS

• Part number available on request
