CONVENTIONAL INTRINSICALLY SAFE CALL POINTS

I.S. Push Button Call Point

I.S. Tool Reset Call Point

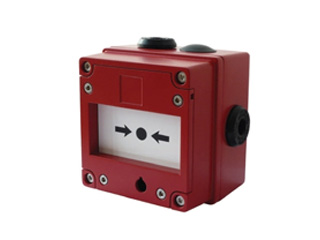

I.S. Break Glass Call Point

I.S. Flameproof Range

PRODUCT OVERVIEW

The range of conventional manual call points include break glass, push button and tool reset versions which are approved for Zone 0, 1, 2, 21 and 22 requiring intrinsically safe equipment for the control of fire and gas alarm systems.

Available with and without monitoring resistors, all versions are certified to ATEX and IECEx standards.

The range features enclosures manufactured from corrosion proof, marine grade, copper free LM6 (A413) aluminium which is phosphated and powder coated.

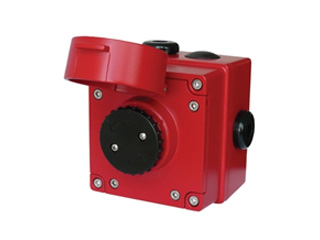

The push button version offers a mechanism which is protected by a spring loaded cover, therefore the switch requires a two-action activation and is user resettable by rotating the push button. The tool reset version requires the user to use a special key supplied with the unit.

• Break Glass, Push Button and Tool Reset versions
• Suitable for Zones 1, 2, 21 and 22
• ATEX and IECEx approval
• Marine grade copper free LM6 aluminium
• 3 x M20 gland entries (supplied with 2 x Ex e nylon plugs)
• Series and/or End of Line Resistors

Other colours available on request

SPECIFICATIONS

• Supply Voltage : 24V DC (28 max)
• Dimensions : 98mm H x 95mm W x 76mm D
• Material : Marine grade copper free LM6 Aluminium
• Colour : Red (RAL3000)
• Operating Temperature : Ta = -40°C to +50°C
• IP Rating : IP66
• Weight : 800g
• Certification : II 2G Ex e d mb IIC T4 Gb, II 2D Ex t IIIC T70°C Db, IP66

Approvals: EN54

ITEM NUMBERS

• 4105-3007 : I.S. Break Glass Call Point, Red with EOL
• 4105-3008 : I.S. Push Button Call Point, Red with EOL
• 4105-3009 : I.S. Tool Reset Call Point, Red with EOL
• 4105-3010 : I.S. Break Glass Call Point, Red
• 4105-3011 : I.S. Push Button Call Point, Red
• 4105-3012 : I.S. Tool Reset Call Point, Red
